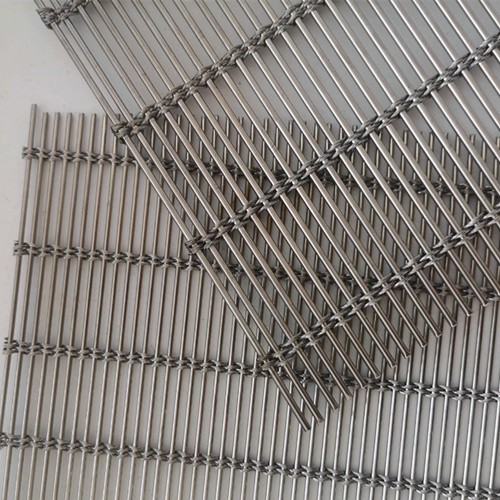

Cable-rod Woven Mesh

Cable-rod Metal Decorative Mesh is a new type of architectural decoration material that is widely used in bars,halls,staircase partitions,interior and exterior curtain walls,indoor and outdoor suspended ceilings,screens,etc.It is combined with braided steel cables and steel rod.Commonly the warp wire is steel cables and the weft wire is steel rod.

Model	Open Area	Cable Wire Dia.	Cable Pitch	Bar Diameter	Bar Pitch	Thickness	Weight
1	40%	1 x 1.8 mm	4.0 mm	1.5 mm	5.5 mm	5.1 mm	7.74 kg/m2
2	43%	1 x 2.5 mm	6.0 mm	2.0 mm	8.0 mm	5.5 mm	7.87 kg/m2
3	62%	2 x 2.75 mm	40 mm	4.0 mm	14.5 mm	9.5 mm	9.41 kg/m2
4	37.2%	3 x 0.5 mm	3.5 mm	0.5 mm	1.4 mm	1.3 mm	2.40 kg/m2
5	71%	3 x 1.6 mm	80 mm	2.5 mm	10 mm	5.7 mm	4.58 kg/m2
6	65%	3 x 2 mm	80 mm	3.0 mm	10 mm	7.0 mm	6.67 kg/m2
7	65.9%	3 x 2.75 mm	110 mm	4.0 mm	14.5 mm	10 mm	8.5 kg/m2
8	67%	3 x 3 mm	110 mm	4.0 mm	14.2 mm	10 mm	8.6 kg/m2
9	44.3%	4 x 0.75 mm	26.4 mm	1.5 mm	3.0 mm	3.0 mm	5.2 kg/m2
10	62%	4 x 1 mm	36 mm	2.0 mm	6.6 mm	4.0 mm	4.55 kg/m2
11	40%	4 x 2 mm	50 mm	3.0 mm	6.0 mm	7.0 mm	11.2 kg/m2
12	42%	4 x 2 mm	50 mm	3.0 mm	6.0 mm	7.0 mm	11.8 kg/m2

The Cable-rod Woven Architectural Mesh is made by a special process,and due to the flexibility and glossiness of its metal ropes and rods,it directly creates different modern decorative art styles.

Cable-rod Woven Decorative Mesh Features:
1. Fireproof,it is non flammable.
2. Easy to clean.
3. Easy and fast installation.
4. The appearance is gorgeous,reflecting infinite creativity and artistic beauty.
5. Diversity of openings and sizes.

Cable Rod Architectural Wire Mesh Application:
1.Windows screen; 2.Space divider; 3.Mesh curtains; 4.Wall decoration;
5.Ceiling decoration; 6.Handrail balustrade; 7.Facade cladding;
8.Elevator cabins screen; 9.Shop-exhibition stands; 10. Security door;
11.Partition and isolation screens; 12.Glass laminated wire; 13.Elevator cab mesh.
