Compared with welded mesh gabion,hexagonal woven gabion basket is flexible and can be adjusted with the settlement of the ground surface to better fit the foundation.It is more suitable for hydraulic engineering.
Specification：
Opening 60 x 80(wire diameter 2.0 2.2 2.7)Generally used for slope protection
Opening 80 x 100(wire diameter 2.2 2.5 2.7)Generally used for slope protection and corner protection
Opening 100 x 120(wire diameter 2.5 2.7 3.0 3.2)Generally used for embankments
Opening 120 x 150 Generally used to protect against falling rocks from mountains
Normal Gabion Basket Size
2x1x1,3x1x1,4x1x1,4x1x0.5 meters
Normal Gabion Mattress Size
6x2x0.3,5x2x0.3,6x2x0.23,4x1x0.3 meters
Wire Size: Mesh wire(2-4mm),selvaged wire(0.5-1mm thicker than mesh wire),binding wire(normal 2.2mm)
Surface treatment: Hot dipped galvanized,galfan wire,PVC coated wire
Supplementary:

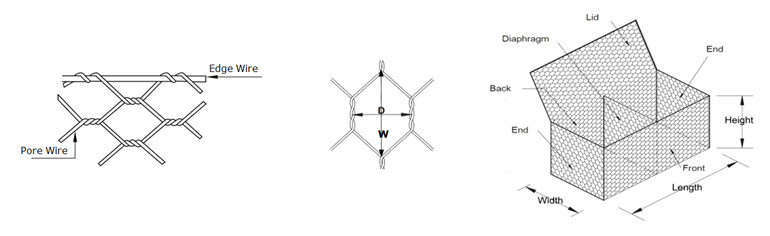

Add a partition diaphragm for each meter along the length of the gabion basket.
The length of the double stranded section shall not be less than 50mm to ensure that the metal coating and PVC coating of the stranded steel wire are not damaged.
Features:
1.Flexible structures can adapt to changes in the slope without being damaged, and have better safety and stability than rigid structures.
2.Strong anti erosion ability, capable of withstanding water flow speeds up to 6m/s.
3.This structure is essentially permeable and has a strong tolerance for the natural and filtration effects of groundwater.The suspended solids and sludge in the water can settle in the filling cracks,which is conducive to the growth of natural plants and gradually restores the original ecological environment.
Application:
The Wire Mesh Gabion Baskets can be used for slope support,foundation pit support,mountain rock surface hanging net spraying,slope planting (greening),railway and highway isolation and blocking.It can also be made into box cages and mesh mats,used for erosion prevention and protection of rivers,embankments,and seawalls,as well as mesh boxes for reservoir and river closure.
